17-前端 Web 实战(Tlias 案例-员工管理)

我们可见一个原则:

先写页面,再写动态逻辑

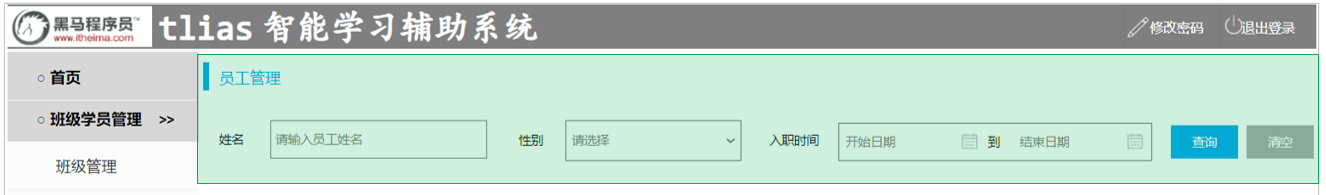

我们来看一下员工管理的页面原型：

包括如下几个部分：

• 条件分页查询
• 新增员工
• 修改员工
• 删除员工

除了员工管理的功能以外，还涉及到登录、退出等功能。

条件分页查询

介绍

在页面原型中，我们可以看到在查询员工信息列表时，既需要根据条件动态查询，还需要对查询的结果进行分页处理。

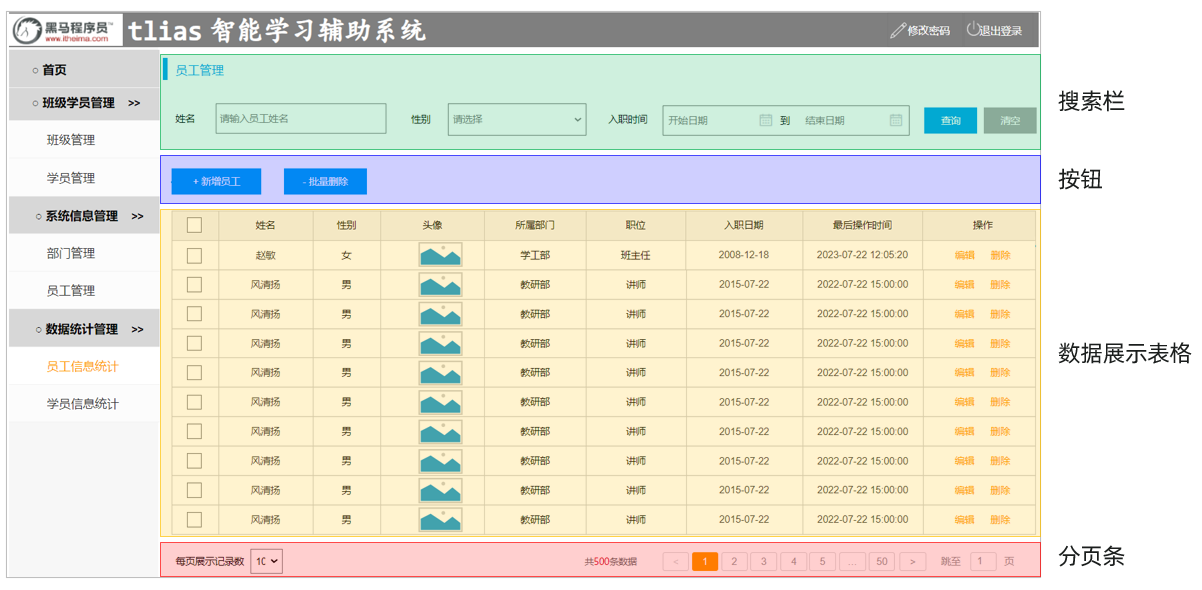

那接下来，我们在制作这个页面时，将先完成基本的页面布局，再完成数据的动态加载。 而页面布局，又分为 4 个部分，分别为：

• 搜索栏
• 按钮
• 数据展示表格
• 分页条

页面布局

搜索表单

1). 在 views/emp/index.vue 中的 <script setup></script> 中增加如下 js 代码:

import { ref} from 'vue'

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})//这里实际上是进行封装了一下.一般来说,如果一个表单有多个表单项,那么就封装成一个对象

const search = () => {
  // 处理查询逻辑
  console.log('Search:', searchEmp.value)
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: []
  }
  search()
}

2). 在 views/emp/index.vue 中的 <template></template> 中增加如下 js 代码:

<h1>员工管理</h1> <br>
  {{ searchEmp }}
  <el-form :inline="true" :model="searchEmp">//为什么要绑定这个,可以从上面的clear函数得知:我们直接可以方便的进行处理
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

注意：在 element-plus 中，提供的日期选择组件，最终提交的值的格式，如果为 2024-02-01 这种格式，需要设置 value-format 属性为 YYYY-MM-DD。

我们在测试的时候，为了能够看到搜索表单采集到的数据，可以直接在通过插值表达式 {{searchEmp}} 在表单上方，将搜索表单项的值直接输出出来。

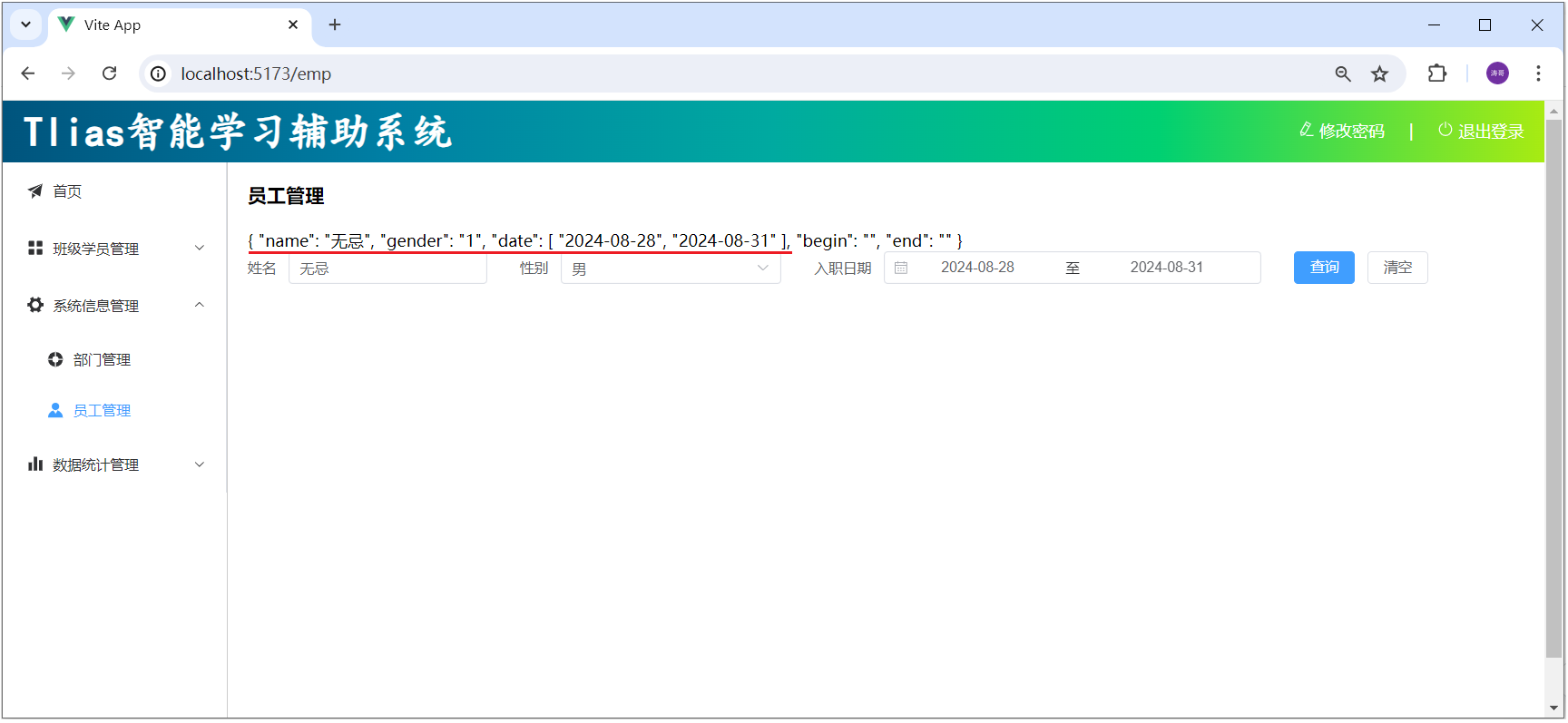

打开浏览器，我们可以看到如下页面效果：

通过测试，我们可以看到，输入的入职日期的搜索条件，用的是 element-plus 的日期范围组件，开始时间和结束时间，两个值，是封装到了一个数组中。

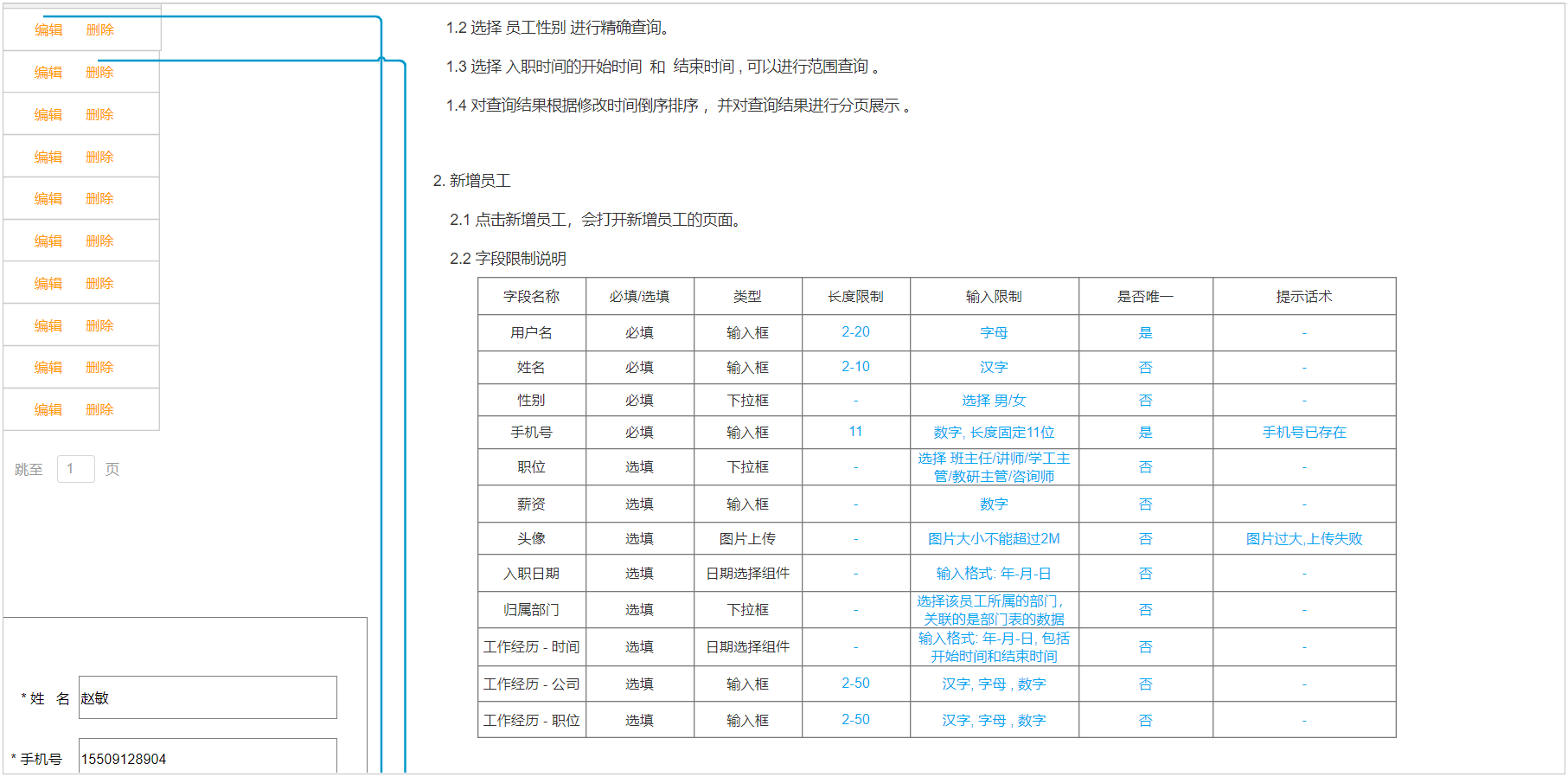

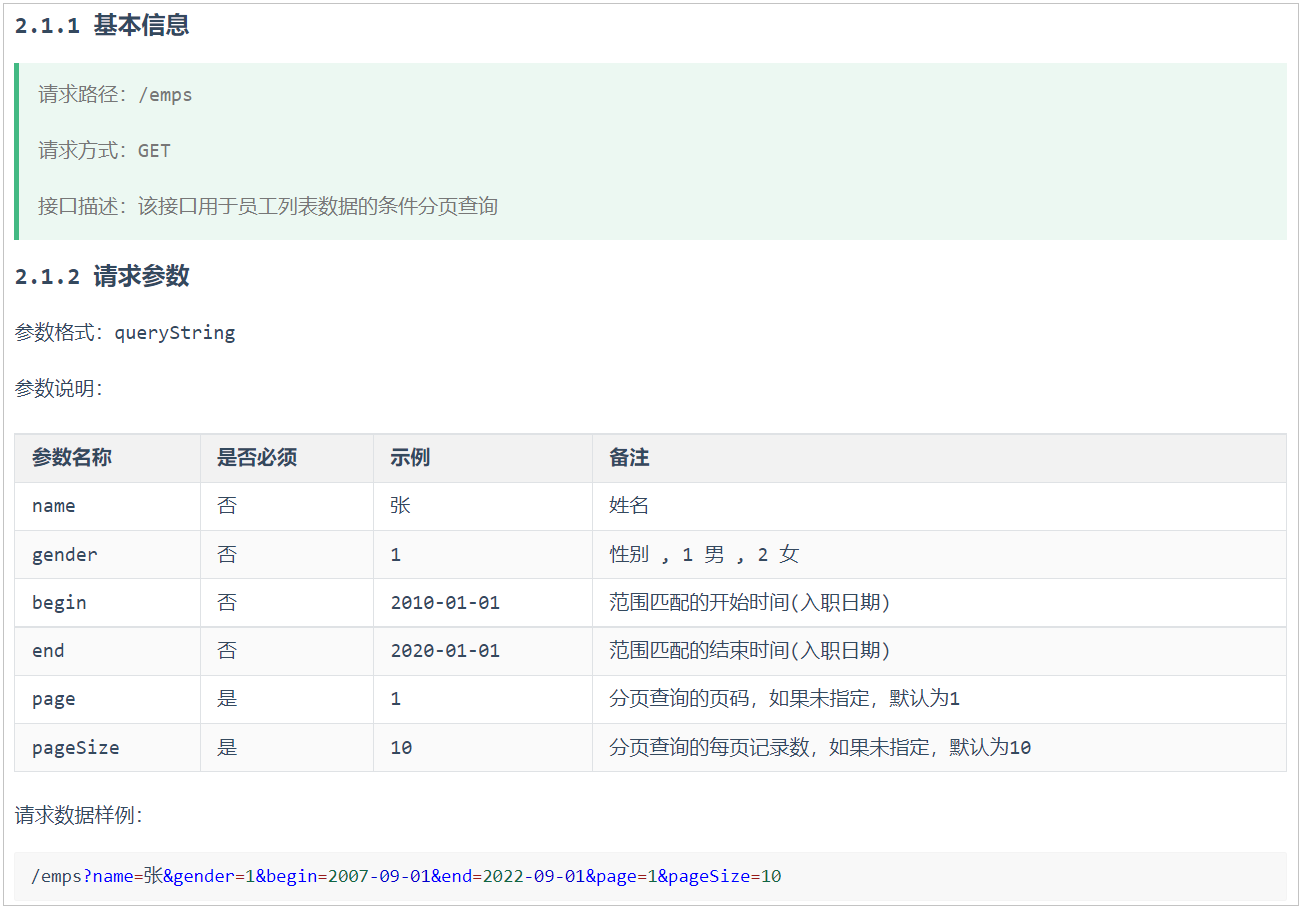

而通过接口接口文档，我们可以可以看到最终在查询员工列表数据时，搜索条件中，入职日期的开始时间 和 结束时间，是两个值，一个是 begin 开始时间，一个是 end 结束时间。

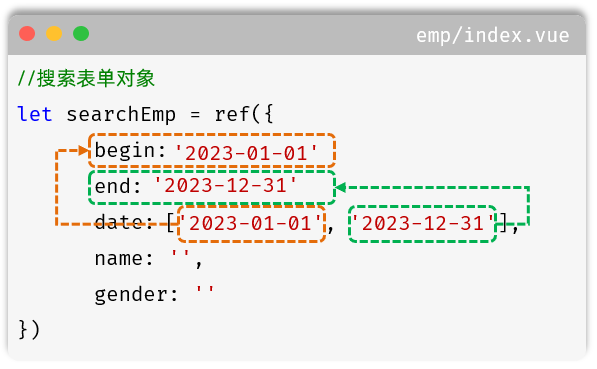

那么此时，我们就需要将 searchEmp 对象中的 date 这个数组的值，解析出来，复制给 begin 和 end。而且，一旦 date 的值发生变化，我们就需要重新计算 begin 和 end 这两个时间，把数组中的第一个元素，赋值给 begin；第二个元素，赋值给 end。

而要实现这个效果，我们就需要用到 Vue3 中提供的 watch 侦听。

watch 侦听

• 作用：侦听一个或多个响应式数据源，并在数据源变化时调用所给的回调函数。

• 用法：

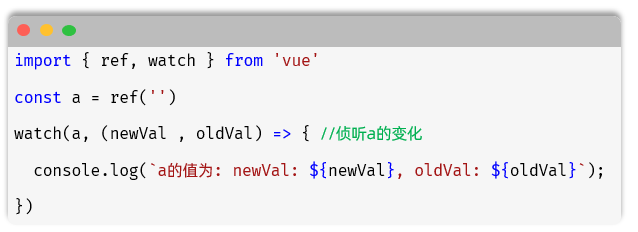

• 导入 watch 函数

• 执行 watch 函数，传入要侦听的响应式数据源（ref 对象）和回调函数；

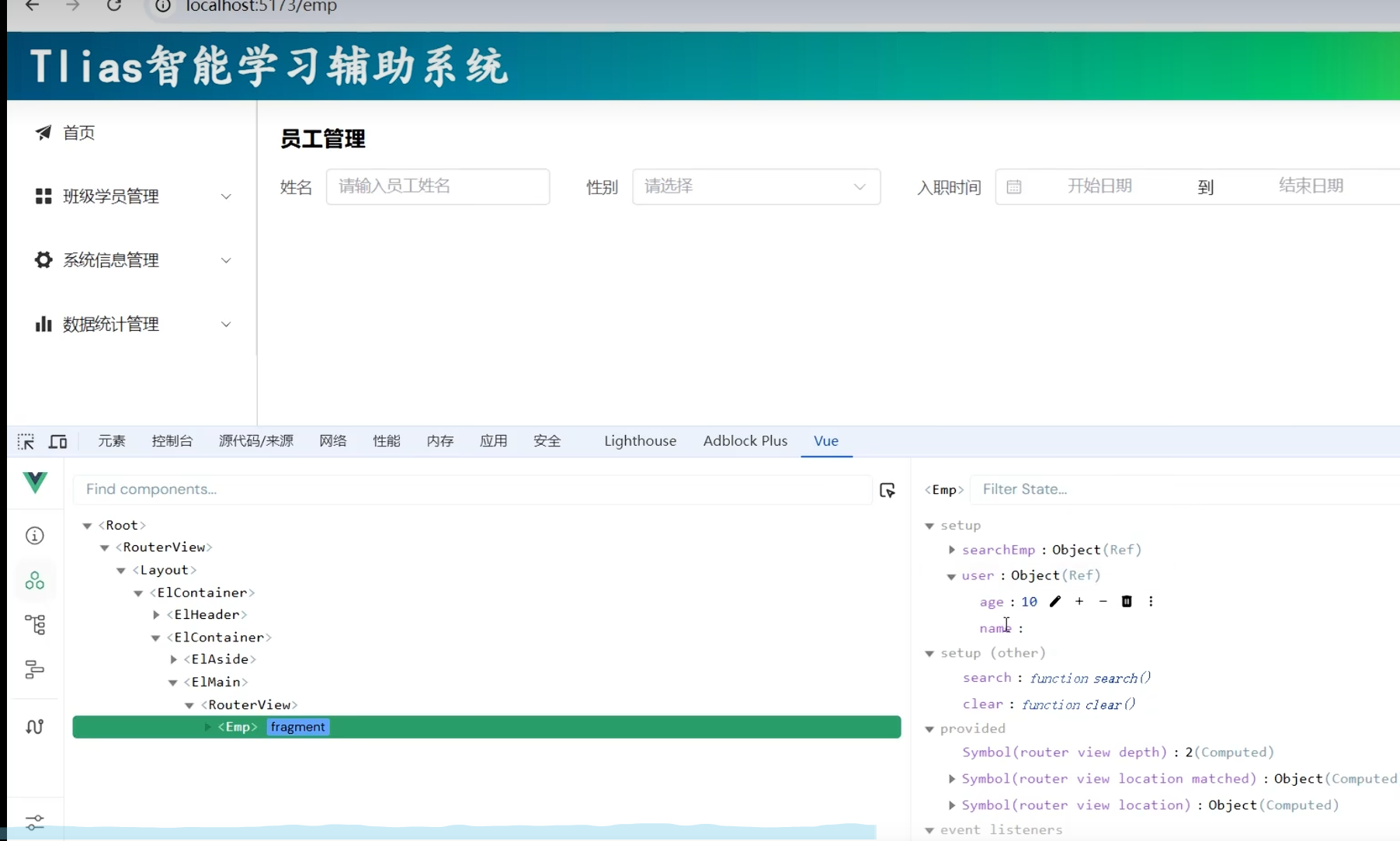

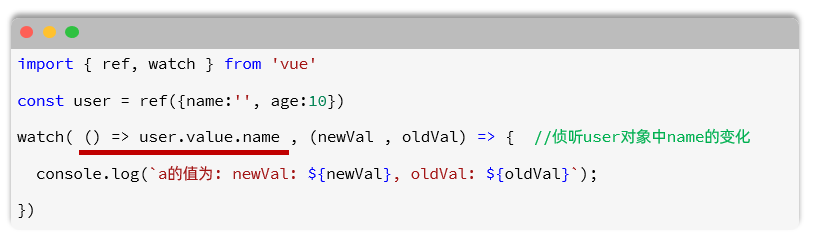

上面想要观察,可以通过chrome的vue拓展,然后在控制台修改a的值. - 侦听对象的单个属性(如果我们只想侦听一个成员的话.) 必须通过"一个函数的返回值"才能实现这个效果

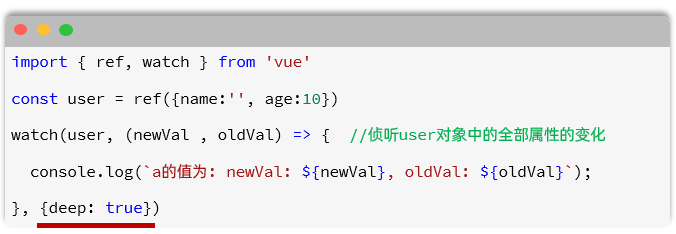

• 侦听对象的全部属性

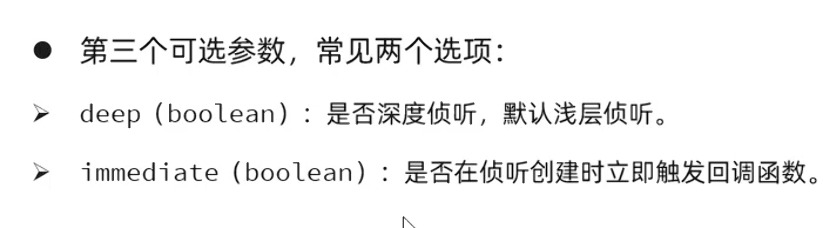

第三个可选参数，常见两个选项： 深度侦听:原本只是引用的目标发生了改变才会触发,而现在则是侦听内部引用的成员.

介绍完了 watch 侦听的基本语法之后，我们再来完成搜索栏中员工入职日期的开始时间和结束时间的处理。 我们要做到，在输入的时间发生变化时，自动为 searchEmp 中的 begin，end 两个属性赋值。

具体代码如下，在 views/emp/index.vue 文件中的 <script></script> 中增加 watch 监听：

import { ref, watch } from 'vue'

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }//为了保证健壮性
  }
)

const search= () => {
  // 处理查询逻辑
  console.log('Search:', searchEmp.value)
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

表格展示

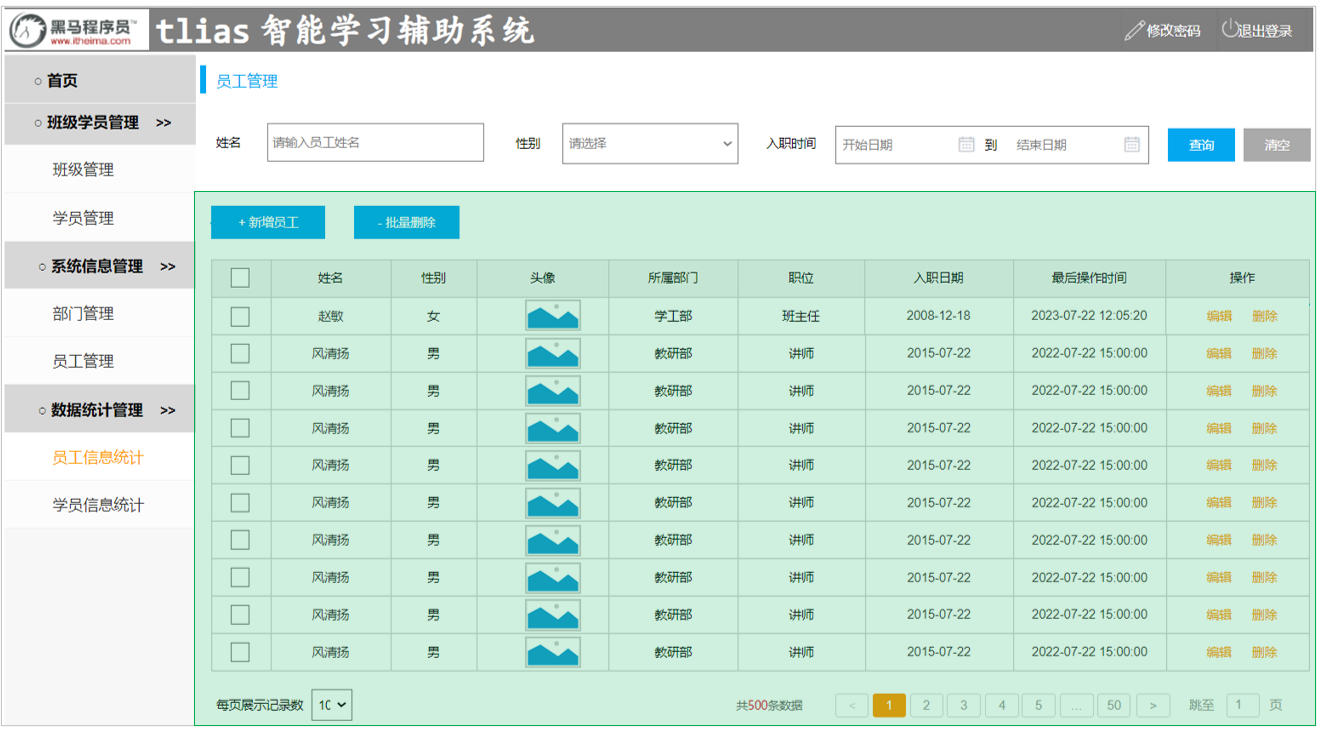

接下来，我们再来制作这个表格。通过页面原型，我们可以看到表格的展示内容及展示形式：

调整后如下所示（绿色背景部分为新添加部分）：

<script setup>
import { ref, watch } from 'vue'

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

const search= () => {
  // 处理查询逻辑
  console.log('Search:', searchEmp.value)
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([
   {
        "id": 1,
        "username": "jinyong",
        "password": "123456",
        "name": "金庸",
        "gender": 1,
        "image": "https://web-framework.oss-cn-hangzhou.aliyuncs.com/2022-09-02-00-27-53B.jpg",
        "job": 2,
        "salary": 8000,
        "entryDate": "2015-01-01",
        "deptId": 2,
        "deptName": "教研部",
        "createTime": "2022-09-01T23:06:30",
        "updateTime": "2022-09-02T00:29:04"
  }
])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)

// 分页处理
const handleSizeChange = (val) => {
  search()
}
const handleCurrentChange = (val) => {
  search()
}


</script>

<template>
  <h1>员工管理</h1> <br>
  {{ searchEmp }}
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click=""> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

<!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>//这是一个复选框
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="170" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" alt="Avatar" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
      <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
        </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
  <el-pagination
    @size-change="handleSizeChange"
    @current-change="handleCurrentChange"
    v-model:current-page="currentPage"
    v-model:page-size="pageSize"
    :page-sizes="[10, 20, 30, 40]"
    layout="total, sizes, prev, pager, next, jumper"
    :total="total"
  >
  </el-pagination>
</template>

<style scoped>
.avatar {
  height: 40px;
}
</style>

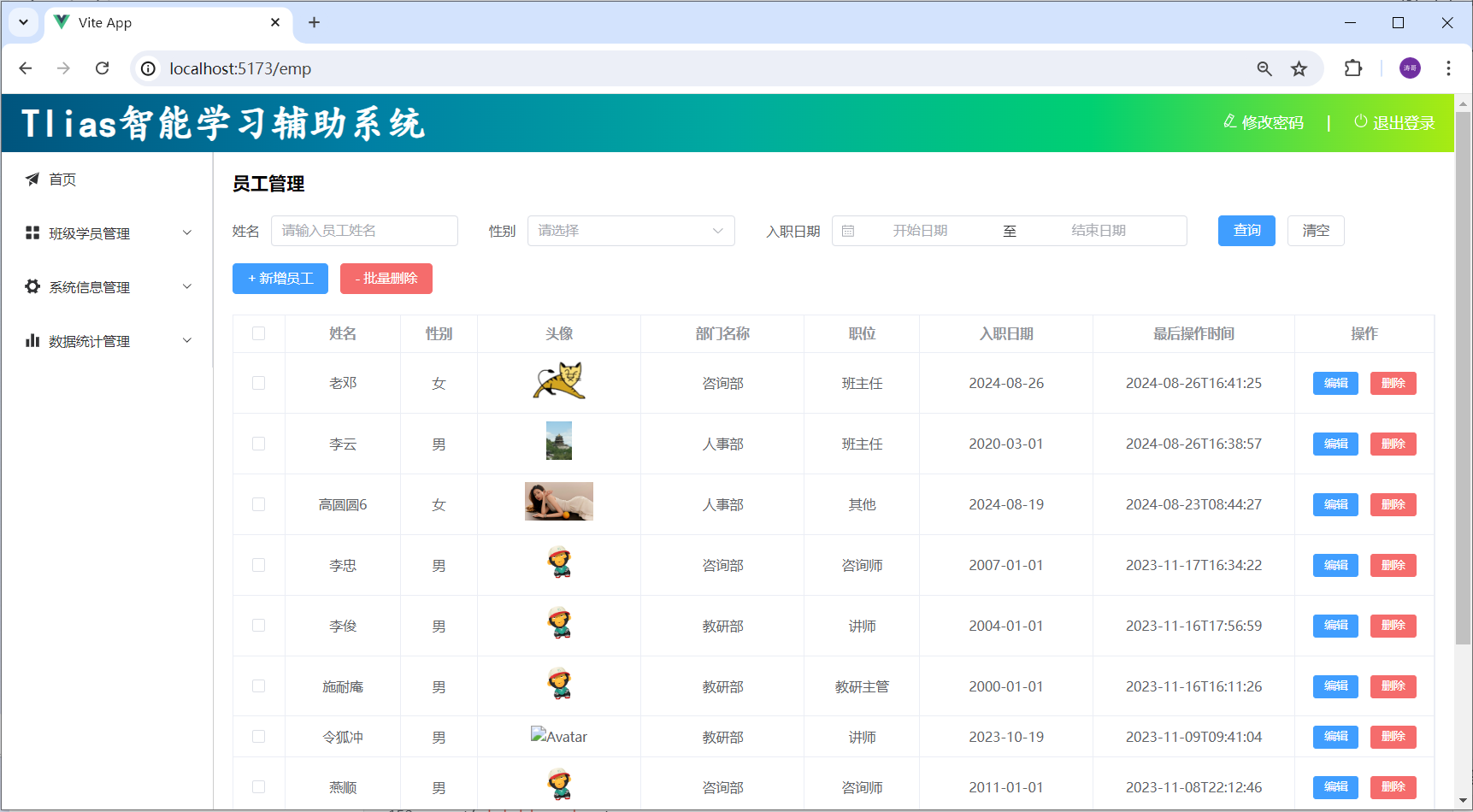

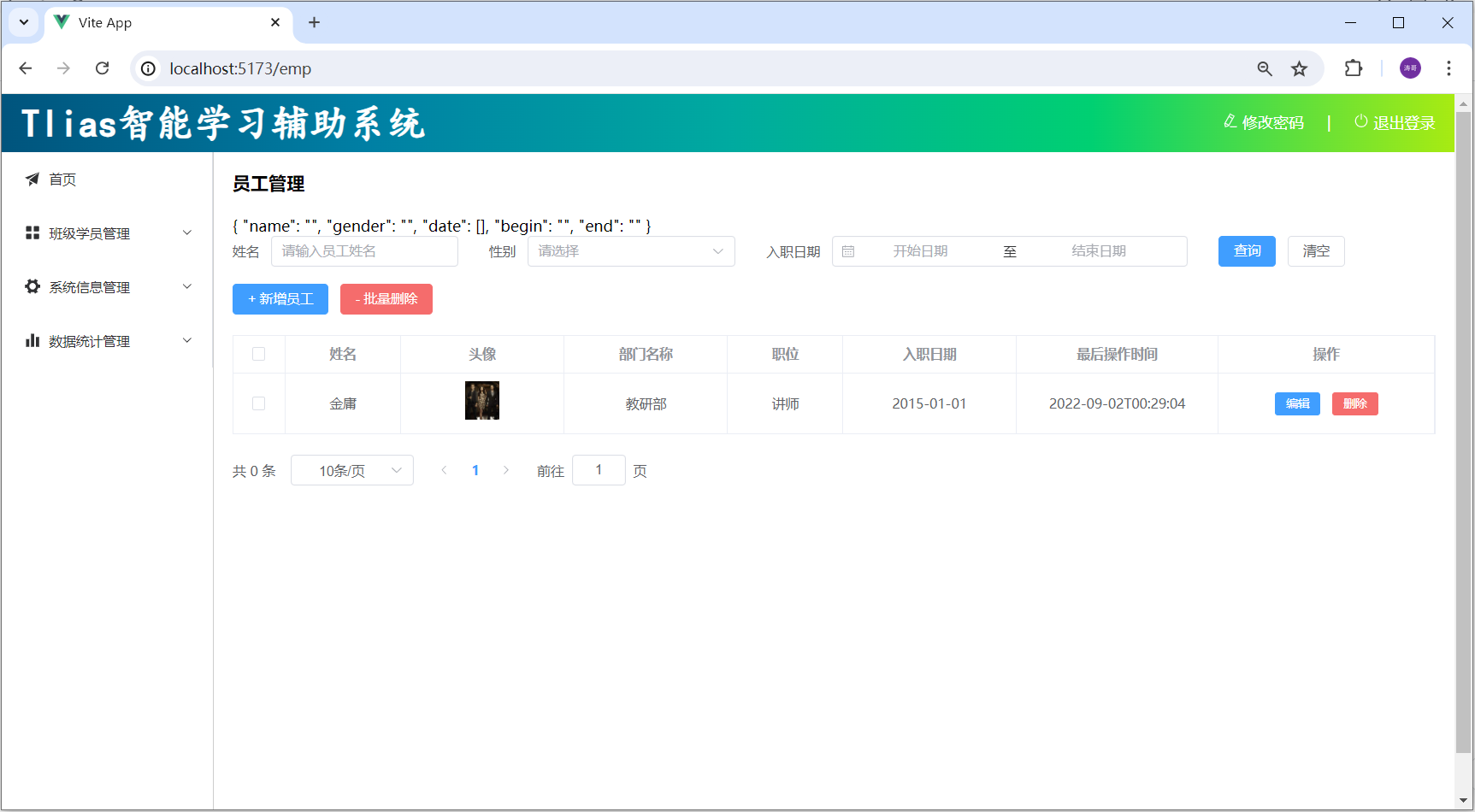

代码编写完毕后，我们打开浏览器会看到如下效果：

我们可以看到，图片、职位字段都正常展示出来了。

页面交互

基本的页面布局完成之后，接下来，我们再来完成页面的交互效果，具体效果有如下三项：

• 页面加载完毕后，查询员工信息列表。
• 点击查询按钮，查询员工信息列表。
• 当页码、每页展示记录数发生变化时，查询员工信息列表。

那么要想实现上述的效果，我们就需要在 Vue 的钩子函数 onMounted 中，调用查询方法 search，然后在 search 方法中发起异步请求，请求服务端。

当页码、每页展示的记录数发生变化时，会触发 handleSizeChange、handleCurrentChange 方法，然后在这两个方法中再调用 search 方法，发起异步请求，请求服务端即可。

具体代码实现如下：

1). 在 src/api 目录下再定义一个 emp.js

我们可以一次性将增删改查相关的 api 操作的函数都定义好。

import request from "@/utils/request";

//查询员工列表数据
export const queryPageApi = (name,gender,begin,end,page,pageSize) =>
  request.get(`/emps?name=${name}&gender=${gender}&begin=${begin}&end=${end}&page=${page}&pageSize=${pageSize}`)

//新增
export const addApi = (emp) =>  request.post('/emps', emp);

//根据ID查询
export const queryInfoApi = (id) =>  request.get(`/emps/${id}`);

//修改
export const updateApi = (emp) =>  request.put('/emps', emp);

//删除
export const deleteApi = (ids) =>  request.delete(`/emps?ids=${ids}`);

2). 在 src/views/emp/index.vue 文件中完成页面交互实现

<script setup>
import { ref, watch, onMounted } from 'vue'
import { queryPageApi } from '@/api/emp'

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

onMounted(() => {
  search()
})

//查询员工
const search= async () => {
  console.log('Search:', searchEmp.value)
  const result = await queryPageApi(searchEmp.value.name, searchEmp.value.gender, searchEmp.value.begin, searchEmp.value.end, currentPage.value, pageSize.value);
  if(result.code){
    empList.value = result.data.rows
    total.value = result.data.total
  }
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)

// 分页处理
const handleSizeChange = (val) => {
  search()
}
const handleCurrentChange = (val) => {
  search()
}

</script>

<template>
  <h1>员工管理</h1> <br>
  {{ searchEmp }}
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click=""> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

  <!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="80" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
      <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
      </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
  <el-pagination
      v-model:current-page="currentPage"
      v-model:page-size="pageSize"
      :page-sizes="[5, 10, 20, 30, 50, 75, 100]"
      :background="background"
      layout="total, sizes, prev, pager, next, jumper"
      :total="total"
      @size-change="handleSizeChange"
      @current-change="handleCurrentChange"
    />
  </el-pagination>
</template>

<style scoped>
.avatar {
  height: 40px;
}
</style>

代码编写完成之后，我们可以打开浏览器测试一下：

新增员工

页面布局

需求

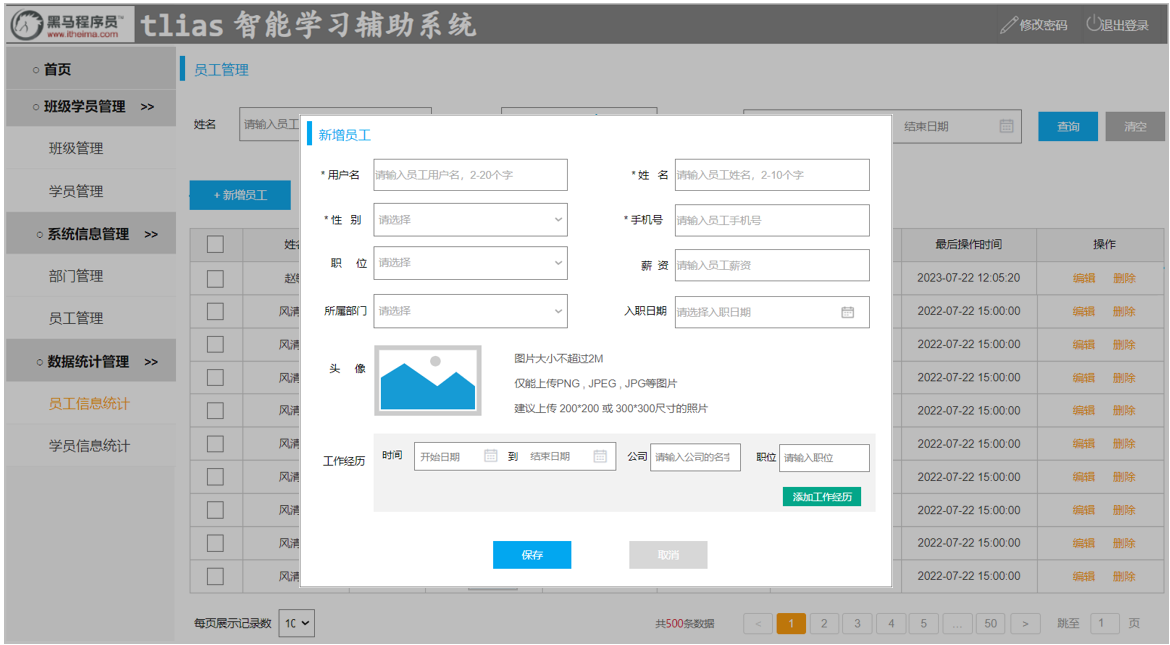

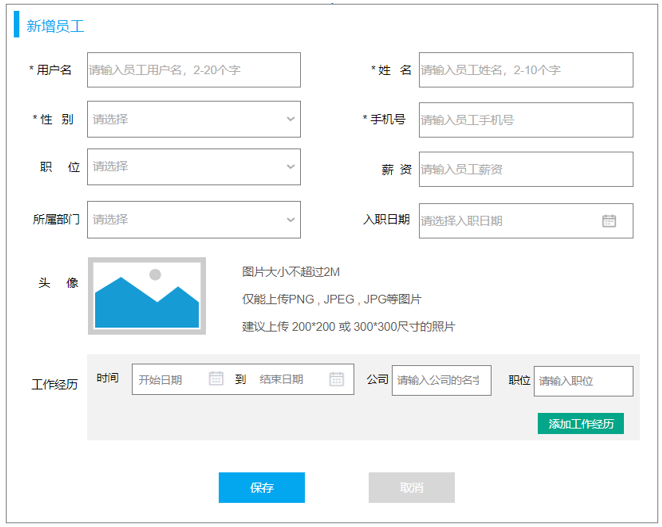

从页面原型中，我们可以看到，新增员工信息的表单包含两个部分，分别为：

• 员工的基本信息
• 员工的工作经历信息

基本布局实现

接下来，我们也可以基于 AI 来帮我们完成页面的整体布局。格外注意我写的注释部分.

在 src/views/emp/index.vue 中增加如下代码（绿色背景部分）：

<script setup>
import { ref, watch, onMounted } from 'vue'
import { ElMessage } from 'element-plus'
import { queryPageApi } from '@/api/emp'

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

onMounted(() => {
  search()
})

//查询员工
const search= async () => {
  console.log('Search:', searchEmp.value)
  const result = await queryPageApi(searchEmp.value.name, searchEmp.value.gender, searchEmp.value.begin, searchEmp.value.end, currentPage.value, pageSize.value);
  if(result.code){
    empList.value = result.data.rows
    total.value = result.data.total
  }
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)


// 分页处理
const handleSizeChange = (val) => {
  search();
}
const handleCurrentChange = (val) => {
  search();
}


//新增员工
const addEmp = () => {
  dialogVisible.value = true
  dialogTitle.value = '新增员工'
}


//新增/修改表单
const employeeFormRef = ref(null)
const employee = ref({
  username: '',
  name: '',
  gender: '',
  phone: '',
  job: '',
  salary: '',
  deptId: '',
  entryDate: '',
  image: '',
  exprList: []
})

// 控制弹窗
const dialogVisible = ref(false)
const dialogTitle = ref('新增员工')

//文件上传
// 图片上传成功后触发
const handleAvatarSuccess = (response,uploadFile) => {
  employee.value.image = response.data
}
// 文件上传之前触发
const beforeAvatarUpload = (rawFile) => {
  if (rawFile.type !== 'image/jpeg' && rawFile.type !== 'image/png') {
    ElMessage.error('只支持上传图片')
    return false
  } else if (rawFile.size / 1024 / 1024 > 10) {
    ElMessage.error('只能上传10M以内图片')
    return false
  }
  return true
}

</script>

<template>
  <h1>员工管理</h1> <br>
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click="addEmp"> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

  <!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="80" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" alt="Avatar" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
      <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
      </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
    <el-pagination
      v-model:current-page="currentPage"
      v-model:page-size="pageSize"
      :page-sizes="[5, 10, 20, 30, 50, 75, 100]"
      :background="background"
      layout="total, sizes, prev, pager, next, jumper"
      :total="total"
      @size-change="handleSizeChange"
      @current-change="handleCurrentChange"
    />

  <!-- 新增/修改员工的对话框 -->
  <el-dialog v-model="dialogVisible" :title="dialogTitle">
      <el-form ref="employeeFormRef" :model="employee" label-width="80px">
        <!-- 基本信息,使用了一种Layout 24分栏布局 -->
        <!-- 第一行 -->
        <el-row :gutter="20">//每个el-row都是一行.gutter表示每个组件之间的间距.
          <el-col :span="12">//每个el-col都是一行中的一列.这里的span表示占用的宽度.由于12/24 = 1/2,因此这里就是占一半
            <el-form-item label="用户名">
              <el-input v-model="employee.username" placeholder="请输入员工用户名，2-20个字"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="姓名">
              <el-input v-model="employee.name" placeholder="请输入员工姓名，2-10个字"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第二行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="性别">
              <el-select v-model="employee.gender" placeholder="请选择性别" style="width: 100%;">
                <el-option label="男" value="1"></el-option>
                <el-option label="女" value="2"></el-option>
              </el-select>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="手机号">
              <el-input v-model="employee.phone" placeholder="请输入员工手机号"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第三行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="职位">
              <el-select v-model="employee.job" placeholder="请选择职位" style="width: 100%;">
                <el-option label="班主任" value="1"></el-option>
                <el-option label="讲师" value="2"></el-option>
                <el-option label="学工主管" value="3"></el-option>
                <el-option label="教研主管" value="4"></el-option>
                <el-option label="咨询师" value="5"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="薪资">
              <el-input v-model="employee.salary" placeholder="请输入员工薪资"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第四行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="所属部门">
              <el-select v-model="employee.deptId" placeholder="请选择部门" style="width: 100%;">
                <el-option label="研发部" value="1"></el-option>
                <el-option label="市场部" value="2"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="入职日期">
              <el-date-picker v-model="employee.entryDate" type="date" style="width: 100%;" placeholder="选择日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD"></el-date-picker>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第五行 -->
        <el-row :gutter="20">
          <el-col :span="24">
            <el-form-item label="头像">
              <el-upload
                class="avatar-uploader"
                action="/api/upload"
                :show-file-list="false"
                :on-success="handleAvatarSuccess"
                :before-upload="beforeAvatarUpload"
                >
                <img v-if="employee.image" :src="employee.image" class="avatar" />
                <el-icon v-else class="avatar-uploader-icon"><Plus /></el-icon>
              </el-upload>
            </el-form-item>
          </el-col>
        </el-row>


        <!-- 工作经历 -->
        <!-- 第六行 -->
        <el-row :gutter="10">
          <el-col :span="24">
            <el-form-item label="工作经历">
              <el-button type="success" size="small" @click="">+ 添加工作经历</el-button>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第七行 ...  工作经历 -->
        <el-row :gutter="3">
          <el-col :span="10">
            <el-form-item size="small" label="时间" label-width="80px">
              <el-date-picker type="daterange" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD" ></el-date-picker>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="公司" label-width="60px">
              <el-input placeholder="请输入公司名称"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="职位" label-width="60px">
              <el-input placeholder="请输入职位"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="2">
            <el-form-item size="small" label-width="0px">
              <el-button type="danger" >- 删除</el-button>
            </el-form-item>
          </el-col>
        </el-row>
      </el-form>

        <!-- 底部按钮 -->
        <template #footer>
          <span class="dialog-footer">
            <el-button @click="dialogVisible = false">取消</el-button>
            <el-button type="primary" @click="">保存</el-button>
          </span>
        </template>

    </el-dialog>

</template>

<style scoped>
.avatar {
  height: 40px;
}
.avatar-uploader .avatar {
  width: 78px;
  height: 78px;
  display: block;
}
.avatar-uploader .el-upload {
  border: 1px dashed var(--el-border-color);
  border-radius: 6px;
  cursor: pointer;
  position: relative;
  overflow: hidden;
  transition: var(--el-transition-duration-fast);
}

.avatar-uploader .el-upload:hover {
  border-color: var(--el-color-primary);
}

.el-icon.avatar-uploader-icon {
  font-size: 28px;
  color: #8c939d;
  width: 78px;
  height: 78px;
  text-align: center;
  /* 添加灰色的虚线边框 */
  border: 1px dashed var(--el-border-color);
}
</style>

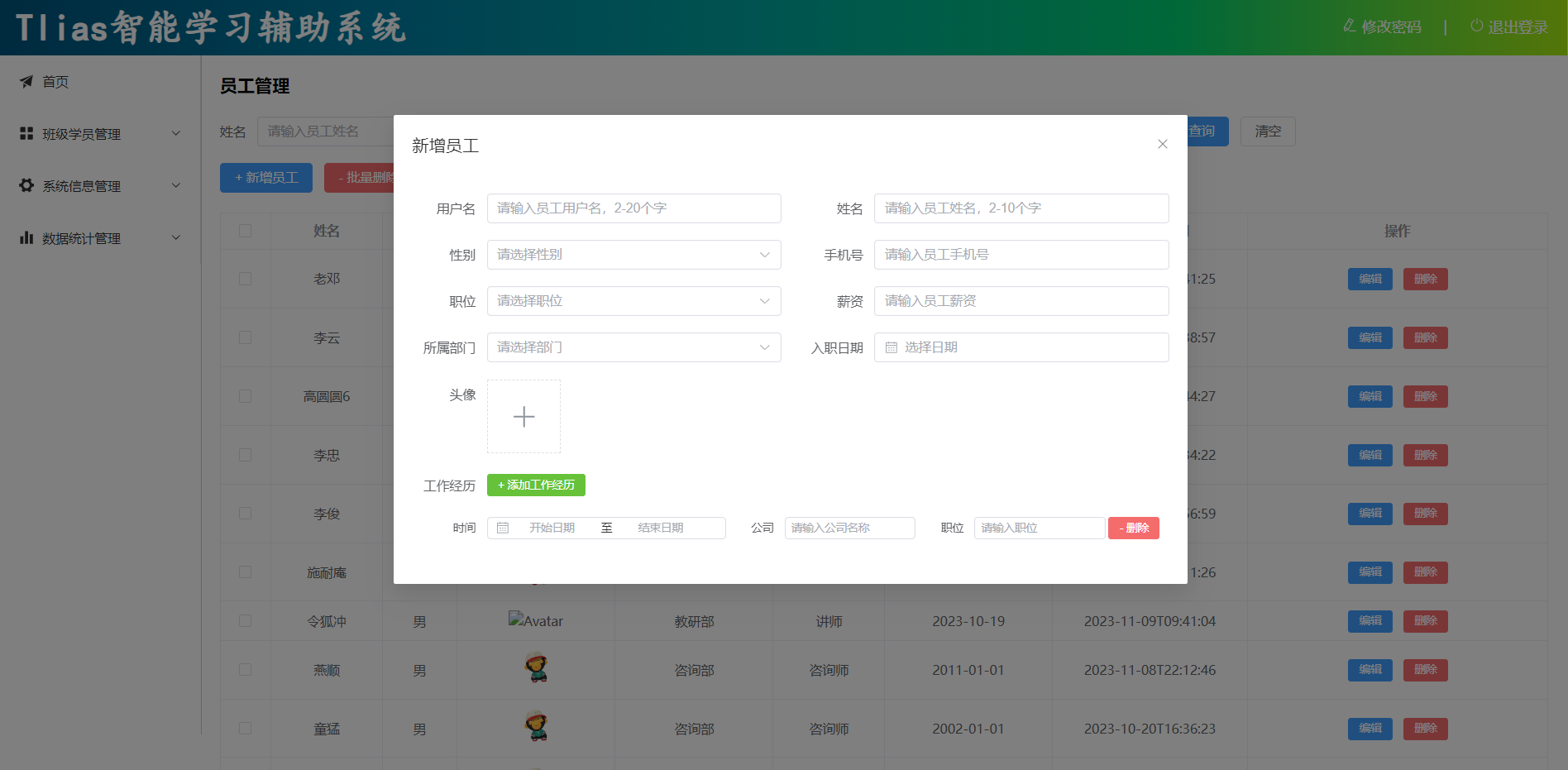

代码编写完毕后，打开浏览器看到最终效果如下：

这样最基本的布局就有了，接下来，我们需要对其进行进一步的优化。

页面布局优化

表单中的数据动态展示 。比如：所属部门、职位、性别，这些源数据我们可以定义在 js 代码中，在页面中基于 v-for 指令，遍历展示出来，便于项目的统一维护处理。

优化后的页面内容如下：

<script setup>
import { ref, watch, onMounted } from 'vue'
import { ElMessage } from 'element-plus'
import { queryPageApi } from '@/api/emp'
import { queryAllApi as queryAllDeptApi } from '@/api/dept'//这是起一个别名,让命名清晰一点

//职位列表数据
const jobs = ref([{ name: '班主任', value: 1 },{ name: '讲师', value: 2 },{ name: '学工主管', value: 3 },{ name: '教研主管', value: 4 },{ name: '咨询师', value: 5 },{ name: '其他', value: 6 }])
//性别列表数据
const genders = ref([{ name: '男', value: 1 }, { name: '女', value: 2 }])
//部门列表数据(这个需要动态查询)
const deptList = ref([])

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

onMounted(async () => {
  search()

  //加载所有部门数据
  const result = await queryAllDeptApi();
  if(result.code){
    deptList.value = result.data
  }
})

//查询员工
const search= async () => {
  console.log('Search:', searchEmp.value)
  const result = await queryPageApi(searchEmp.value.name, searchEmp.value.gender, searchEmp.value.begin, searchEmp.value.end, currentPage.value, pageSize.value);
  if(result.code){
    empList.value = result.data.rows
    total.value = result.data.total
  }
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)


// 分页处理
const handleSizeChange = (val) => {
  search()
}
const handleCurrentChange = (val) => {
  search()
}


//新增员工
const addEmp = () => {
  dialogVisible.value = true
  dialogTitle.value = '新增员工'
}

//新增/修改表单
const employeeFormRef = ref(null)
const employee = ref({
  username: '',
  name: '',
  gender: '',
  phone: '',
  job: '',
  salary: '',
  deptId: '',
  entryDate: '',
  image: '',
  exprList: []
})

// 控制弹窗
const dialogVisible = ref(false)
const dialogTitle = ref('新增员工')

//文件上传
// 图片上传成功后触发
const handleAvatarSuccess = (response,uploadFile) => {
  employee.value.image = response.data
}
// 文件上传之前触发
const beforeAvatarUpload = (rawFile) => {
  if (rawFile.type !== 'image/jpeg' && rawFile.type !== 'image/png') {
    ElMessage.error('只支持上传图片')//这个组件需要引入
    return false//表示阻止文件上传
  } else if (rawFile.size / 1024 / 1024 > 10) {
    ElMessage.error('只能上传10M以内图片')
    return false
  }
  return true
}

</script>

<template>
  <h1>员工管理</h1> <br>
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click="addEmp"> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

  <!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="80" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" alt="Avatar" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
     <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
        </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
    <el-pagination
      v-model:current-page="currentPage"
      v-model:page-size="pageSize"
      :page-sizes="[5, 10, 20, 30, 50, 75, 100]"
      :background="background"
      layout="total, sizes, prev, pager, next, jumper"
      :total="total"
      @size-change="handleSizeChange"
      @current-change="handleCurrentChange"
    />

  <!-- 新增/修改员工的对话框 -->
  <el-dialog v-model="dialogVisible" :title="dialogTitle">
      <el-form ref="employeeFormRef" :model="employee" label-width="80px">
        <!-- 基本信息 -->
        <!-- 第一行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="用户名">
              <el-input v-model="employee.username" placeholder="请输入员工用户名，2-20个字"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="姓名">
              <el-input v-model="employee.name" placeholder="请输入员工姓名，2-10个字"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第二行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="性别">
              <el-select v-model="employee.gender" placeholder="请选择性别" style="width: 100%;">
                <el-option v-for="gender in genders" :key="gender.name" :label="gender.name" :value="gender.value"></el-option>//注意这个v-for
              </el-select>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="手机号">
              <el-input v-model="employee.phone" placeholder="请输入员工手机号"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第三行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="职位">
              <el-select v-model="employee.job" placeholder="请选择职位" style="width: 100%;">
                <el-option v-for="job in jobs" :key="job.name" :label="job.name" :value="job.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="薪资">
              <el-input v-model="employee.salary" placeholder="请输入员工薪资"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第四行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="所属部门">
              <el-select v-model="employee.deptId" placeholder="请选择部门" style="width: 100%;">
                <el-option v-for="dept in deptList" :key="dept.id" :label="dept.name" :value="dept.id"></el-option>//这里也注意这个v-for
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="入职日期">
              <el-date-picker v-model="employee.entryDate" type="date" style="width: 100%;" placeholder="选择日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD"></el-date-picker>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第五行 -->
        <el-row :gutter="20">
          <el-col :span="24">
            <el-form-item label="头像">
              <el-upload//这是用的组件
                class="avatar-uploader"//简单给个属性
                action="/api/upload"//表示上传时调用服务端哪个接口
                :show-file-list="false"//是否展示已经上传的列表
                :on-success="handleAvatarSuccess"//上传成功之后的回调
                :before-upload="beforeAvatarUpload"//主要用来限制用户上传的大小
                >
                <img v-if="employee.image" :src="employee.image" class="avatar" />//如果"employee.image"这个字段有值,那么才会展示这个图片.这个字段有值意味着后端已经把图片的url返回过来了
                <el-icon v-else class="avatar-uploader-icon"><Plus /></el-icon>
              </el-upload>
            </el-form-item>
          </el-col>
        </el-row>


        <!-- 工作经历 -->
        <!-- 第六行 -->
        <el-row :gutter="10">
          <el-col :span="24">
            <el-form-item label="工作经历">
              <el-button type="success" size="small" @click="">+ 添加工作经历</el-button>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第七行 ...  工作经历 -->
        <el-row :gutter="3">
          <el-col :span="10">
            <el-form-item size="small" label="时间" label-width="80px">
              <el-date-picker type="daterange" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD" ></el-date-picker>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="公司" label-width="60px">
              <el-input placeholder="请输入公司名称"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="职位" label-width="60px">
              <el-input placeholder="请输入职位"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="2">
            <el-form-item size="small" label-width="0px">
              <el-button type="danger" >- 删除</el-button>
            </el-form-item>
          </el-col>
        </el-row>
      </el-form>

        <!-- 底部按钮 -->
        <template #footer>
          <span class="dialog-footer">
            <el-button @click="dialogVisible = false">取消</el-button>
            <el-button type="primary" @click="">保存</el-button>
          </span>
        </template>

    </el-dialog>

</template>

<style scoped>
.avatar {
  height: 40px;
}
.avatar-uploader .avatar {
  width: 78px;
  height: 78px;
  display: block;
}
.avatar-uploader .el-upload {
  border: 1px dashed var(--el-border-color);
  border-radius: 6px;
  cursor: pointer;
  position: relative;
  overflow: hidden;
  transition: var(--el-transition-duration-fast);
}

.avatar-uploader .el-upload:hover {
  border-color: var(--el-color-primary);
}

.el-icon.avatar-uploader-icon {
  font-size: 28px;
  color: #8c939d;
  width: 78px;
  height: 78px;
  text-align: center;
  /* 添加灰色的虚线边框 */
  border: 1px dashed var(--el-border-color);
}
</style>

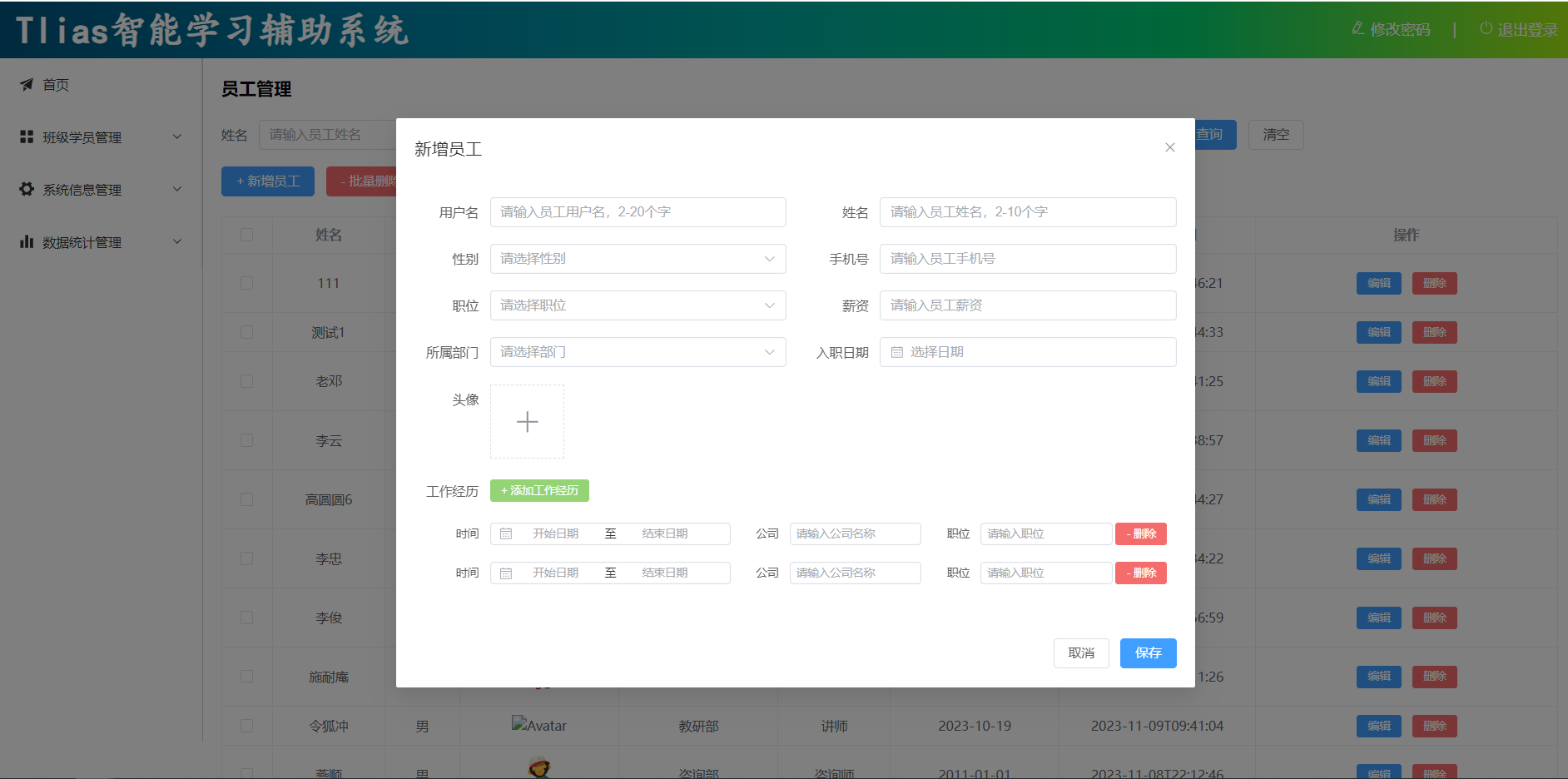

到此呢，页面的基本布局我们就已经完成了。 那接下来呢，我们就可以打开浏览器，看看最终的效果：

添加/删除工作经历

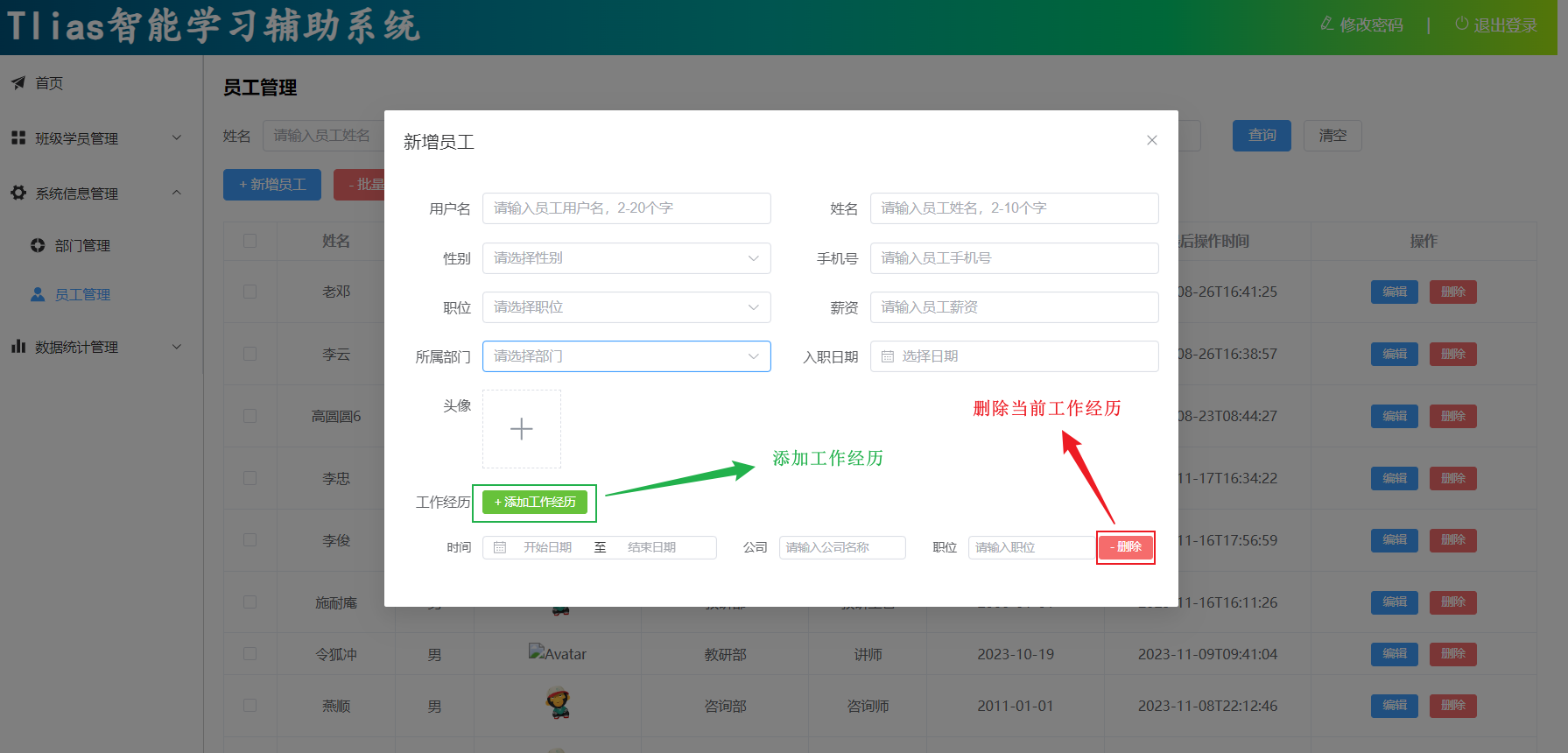

需求

新增员工的基本信息表单已经制作完成了，那接下来，要制作的是员工的工作经历。

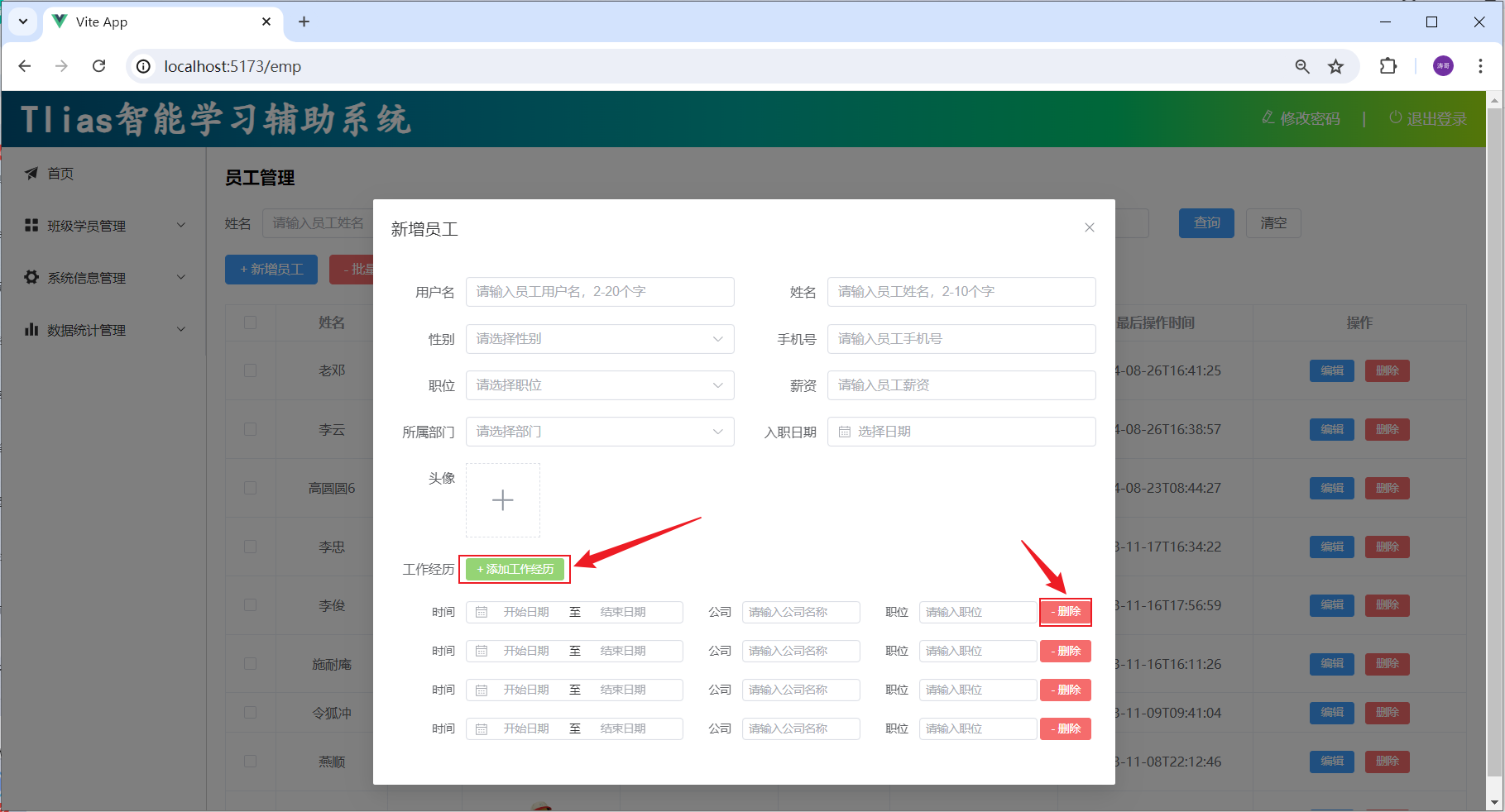

点击 "添加工作经历" 按钮后，新添加一条工作经历；点击每一条后面的 "删除" 按钮，需要删除当前工作经历。

员工的过往工作经历可能是多条，点击 "添加员工工作经历" 按钮，如何增加一个条目 ？ 点击每一条后面的删除按钮，需要删除当前条件？

• Vue 是基于数据驱动视图展示的。
• "添加" 时，我们可以往数组中添加数据。
• "删除" 时，可以删除数组中的元素。
• 一旦数据发生变化，视图中的展示就会发生变化。

实现

1). 在 src/views/emp/index.vue 中的 <script> </script> 中增加如下代码：

//工作经历
//动态添加工作经历 .
const addExprItem = () => {
  employee.value.exprList.push({exprDate: [], begin: '', end: '', company: '', job: ''})
}

//动态删除工作经历 .
const delExprItem = (index) => {
  employee.value.exprList.splice(index, 1)
}

//监听-employee员工对象中的工作经历数据
watch(()=>employee.value.exprList, (newValue, oldValue) => {
  if(employee.value.exprList && employee.value.exprList.length > 0) {
    employee.value.exprList.forEach(expr => {
      expr.begin = expr.exprDate[0]
      expr.end = expr.exprDate[1]
    })
  }
}, {deep: true});

2). 在 src/views/emp/index.vue 中的 <template> </template> 中的按钮绑定事件，并遍历展示工作经历信息：

<!-- 新增/修改员工的对话框 -->
  <el-dialog v-model="dialogVisible" :title="dialogTitle">
      <el-form ref="employeeFormRef" :model="employee" label-width="80px">
        <!-- 基本信息 -->
        <!-- 第一行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="用户名">
              <el-input v-model="employee.username" placeholder="请输入员工用户名，2-20个字"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="姓名">
              <el-input v-model="employee.name" placeholder="请输入员工姓名，2-10个字"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第二行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="性别">
              <el-select v-model="employee.gender" placeholder="请选择性别" style="width: 100%;">
                <el-option v-for="gender in genders" :key="gender.name" :label="gender.name" :value="gender.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="手机号">
              <el-input v-model="employee.phone" placeholder="请输入员工手机号"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第三行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="职位">
              <el-select v-model="employee.job" placeholder="请选择职位" style="width: 100%;">
                <el-option v-for="job in jobs" :key="job.name" :label="job.name" :value="job.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="薪资">
              <el-input v-model="employee.salary" placeholder="请输入员工薪资"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第四行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="所属部门">
              <el-select v-model="employee.deptId" placeholder="请选择部门" style="width: 100%;">
                <el-option v-for="dept in deptList" :key="dept.id" :label="dept.name" :value="dept.id"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="入职日期">
              <el-date-picker v-model="employee.entryDate" type="date" style="width: 100%;" placeholder="选择日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD"></el-date-picker>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第五行 -->
        <el-row :gutter="20">
          <el-col :span="24">
            <el-form-item label="头像">
              <el-upload
                class="avatar-uploader"
                action="/api/upload"
                :show-file-list="false"
                :on-success="handleAvatarSuccess"
                :before-upload="beforeAvatarUpload"
                >
                <img v-if="employee.image" :src="employee.image" class="avatar" />
                <el-icon v-else class="avatar-uploader-icon"><Plus /></el-icon>
              </el-upload>
            </el-form-item>
          </el-col>
        </el-row>


        <!-- 工作经历 -->
        <!-- 第六行 -->
        <el-row :gutter="10">
          <el-col :span="24">
            <el-form-item label="工作经历">
              <el-button type="success" size="small" @click="addExprItem">+ 添加工作经历</el-button>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第七行 ...  工作经历 -->
        <el-row :gutter="3" v-for="(expr, index) in employee.exprList">//我们想要重复的是row
          <el-col :span="10">
            <el-form-item size="small" label="时间" label-width="80px">
              <el-date-picker type="daterange" v-model="expr.exprDate" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD" ></el-date-picker>//注意我们在这里加了绑定
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="公司" label-width="60px">
              <el-input placeholder="请输入公司名称" v-model="expr.company"></el-input>//加了绑定
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="职位" label-width="60px">
              <el-input placeholder="请输入职位" v-model="expr.job"></el-input>//加了绑定
            </el-form-item>
          </el-col>

          <el-col :span="2">
            <el-form-item size="small" label-width="0px">
              <el-button type="danger" @click="delExprItem(index)">- 删除</el-button>//加了绑定.注意这里的index就是遍历的时候获得的缩影
            </el-form-item>
          </el-col>
        </el-row>
       </el-form>

        <!-- 底部按钮 -->
        <template #footer>
          <span class="dialog-footer">
            <el-button @click="dialogVisible = false">取消</el-button>
            <el-button type="primary" @click="">保存</el-button>
          </span>
        </template>

    </el-dialog>

到目前为止，src/views/emp/index.vue 页面的内容如下所示：

<script setup>
import { ref, watch, onMounted } from 'vue'
import { ElMessage } from 'element-plus'
import { queryPageApi } from '@/api/emp'
import { queryAllApi as queryAllDeptApi } from '@/api/dept'

//职位列表数据
const jobs = ref([{ name: '班主任', value: 1 },{ name: '讲师', value: 2 },{ name: '学工主管', value: 3 },{ name: '教研主管', value: 4 },{ name: '咨询师', value: 5 },{ name: '其他', value: 6 }])
//性别列表数据
const genders = ref([{ name: '男', value: 1 }, { name: '女', value: 2 }])
//部门列表数据
const deptList = ref([])

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

onMounted(async () => {
  search()

  //加载所有部门数据
  const result = await queryAllDeptApi();
  if(result.code){
    deptList.value = result.data
  }
})

//查询员工
const search= async () => {
  console.log('Search:', searchEmp.value)
  const result = await queryPageApi(searchEmp.value.name, searchEmp.value.gender, searchEmp.value.begin, searchEmp.value.end, currentPage.value, pageSize.value);
  if(result.code){
    empList.value = result.data.rows
    total.value = result.data.total
  }
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)


// 分页处理
const handleSizeChange = (val) => {
  search()
}
const handleCurrentChange = (val) => {
  search()
}


//新增员工
const addEmp = () => {
  dialogVisible.value = true
  dialogTitle.value = '新增员工'
}

//新增/修改表单
const employeeFormRef = ref(null)
const employee = ref({
  username: '',
  name: '',
  gender: '',
  phone: '',
  job: '',
  salary: '',
  deptId: '',
  entryDate: '',
  image: '',
  exprList: []
})

// 控制弹窗
const dialogVisible = ref(false)
const dialogTitle = ref('新增员工')

//文件上传
// 图片上传成功后触发
const handleAvatarSuccess = (response,uploadFile) => {
  employee.value.image = response.data
}
// 文件上传之前触发
const beforeAvatarUpload = (rawFile) => {
  if (rawFile.type !== 'image/jpeg' && rawFile.type !== 'image/png') {
    ElMessage.error('只支持上传图片')
    return false
  } else if (rawFile.size / 1024 / 1024 > 10) {
    ElMessage.error('只能上传10M以内图片')
    return false
  }
  return true
}

//工作经历
//动态添加工作经历 .
const addExprItem = () => {
  employee.value.exprList.push({exprDate: [], begin: '', end: '', company: '', job: ''})
}

//动态删除工作经历 .
const delExprItem = (index) => {
  employee.value.exprList.splice(index, 1)
}

//监听-employee员工对象中的工作经历数据
watch(()=>employee.value.exprList, (newValue, oldValue) => {
  if(employee.value.exprList && employee.value.exprList.length > 0) {
    employee.value.exprList.forEach(expr => {
      expr.begin = expr.exprDate[0]
      expr.end = expr.exprDate[1]
    })
  }
}, {deep: true});
</script>

<template>
  <h1>员工管理</h1> <br>
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click="addEmp"> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

  <!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="80" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" alt="Avatar" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
      <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
        </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
  <el-pagination
      v-model:current-page="currentPage"
      v-model:page-size="pageSize"
      :page-sizes="[5, 10, 20, 30, 50, 75, 100]"
      :background="background"
      layout="total, sizes, prev, pager, next, jumper"
      :total="total"
      @size-change="handleSizeChange"
      @current-change="handleCurrentChange"
    />

  <!-- 新增/修改员工的对话框 -->
  <el-dialog v-model="dialogVisible" :title="dialogTitle">
      <el-form ref="employeeFormRef" :model="employee" label-width="80px">
        <!-- 基本信息 -->
        <!-- 第一行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="用户名">
              <el-input v-model="employee.username" placeholder="请输入员工用户名，2-20个字"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="姓名">
              <el-input v-model="employee.name" placeholder="请输入员工姓名，2-10个字"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第二行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="性别">
              <el-select v-model="employee.gender" placeholder="请选择性别" style="width: 100%;">
                <el-option v-for="gender in genders" :key="gender.name" :label="gender.name" :value="gender.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="手机号">
              <el-input v-model="employee.phone" placeholder="请输入员工手机号"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第三行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="职位">
              <el-select v-model="employee.job" placeholder="请选择职位" style="width: 100%;">
                <el-option v-for="job in jobs" :key="job.name" :label="job.name" :value="job.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="薪资">
              <el-input v-model="employee.salary" placeholder="请输入员工薪资"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第四行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="所属部门">
              <el-select v-model="employee.deptId" placeholder="请选择部门" style="width: 100%;">
                <el-option v-for="dept in deptList" :key="dept.id" :label="dept.name" :value="dept.id"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="入职日期">
              <el-date-picker v-model="employee.entryDate" type="date" style="width: 100%;" placeholder="选择日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD"></el-date-picker>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第五行 -->
        <el-row :gutter="20">
          <el-col :span="24">
            <el-form-item label="头像">
              <el-upload
                class="avatar-uploader"
                action="/api/upload"
                :show-file-list="false"
                :on-success="handleAvatarSuccess"
                :before-upload="beforeAvatarUpload"
                >
                <img v-if="employee.image" :src="employee.image" class="avatar" />
                <el-icon v-else class="avatar-uploader-icon"><Plus /></el-icon>
              </el-upload>
            </el-form-item>
          </el-col>
        </el-row>


        <!-- 工作经历 -->
        <!-- 第六行 -->
        <el-row :gutter="10">
          <el-col :span="24">
            <el-form-item label="工作经历">
              <el-button type="success" size="small" @click="addExprItem">+ 添加工作经历</el-button>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第七行 ...  工作经历 -->
        <el-row :gutter="3" v-for="(expr, index) in employee.exprList">
          <el-col :span="10">
            <el-form-item size="small" label="时间" label-width="80px">
              <el-date-picker type="daterange" v-model="expr.exprDate" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD" ></el-date-picker>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="公司" label-width="60px">
              <el-input placeholder="请输入公司名称" v-model="expr.company"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="职位" label-width="60px">
              <el-input placeholder="请输入职位" v-model="expr.job"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="2">
            <el-form-item size="small" label-width="0px">
              <el-button type="danger" @click="delExprItem(index)">- 删除</el-button>
            </el-form-item>
          </el-col>
        </el-row>
       </el-form>

        <!-- 底部按钮 -->
        <template #footer>
          <span class="dialog-footer">
            <el-button @click="dialogVisible = false">取消</el-button>
            <el-button type="primary" @click="">保存</el-button>
          </span>
        </template>

    </el-dialog>

</template>

<style scoped>
.avatar {
  height: 40px;
}
.avatar-uploader .avatar {
  width: 78px;
  height: 78px;
  display: block;
}
.avatar-uploader .el-upload {
  border: 1px dashed var(--el-border-color);
  border-radius: 6px;
  cursor: pointer;
  position: relative;
  overflow: hidden;
  transition: var(--el-transition-duration-fast);
}

.avatar-uploader .el-upload:hover {
  border-color: var(--el-color-primary);
}

.el-icon.avatar-uploader-icon {
  font-size: 28px;
  color: #8c939d;
  width: 78px;
  height: 78px;
  text-align: center;
  /* 添加灰色的虚线边框 */
  border: 1px dashed var(--el-border-color);
}
</style>

接下来，我们就可以打开浏览器看到具体的页面效果了。

页面交互

保存员工信息

基本的页面布局，我们完成之后，接下来，就需要完成页面的交互操作。 当点击 “保存” 按钮，需要执行如下操作：

1. 点击保存之后，发送异步请求到服务端，提交数据。
2. 保存完毕之后，如果成功，关闭对话框，重新加载列表数据。
3. 保存完毕之后，如果失败，提示错误信息。

具体操作如下：

1). 为 "保存" 按钮绑定事件

<!-- ........ 前面的代码省略了......... -->
        <!-- 底部按钮 -->
        <template #footer>
          <span class="dialog-footer">
            <el-button @click="dialogVisible = false">取消</el-button>
            <el-button type="primary" @click="save">保存</el-button>
          </span>
        </template>
    </el-dialog>

2). 在 中定义函数 save

//保存员工信息
const save = async () => {
  const result = await addApi(employee.value);
  if(result.code){
    ElMessage.success('新增员工成功')
    dialogVisible.value = false
    search()
  }else {
    ElMessage.error(result.msg)
  }
}

然后我们就可以打开浏览器，测试添加员工了。

表单校验

从页面原型中的需求描述，我们就可以提取出这个表单的校验规则。 我们可以打开页面原型来看一下：

通过页面原型，我们可以提取到的校验规则如下：

表单校验规则：

• 用户名：必填，长度 2-20
• 姓名：必填，长度 2-10
• 性别：必填
• 手机号：必填，符合手机号规则

接下来，我们可以借助于 AI，帮我们生成对应的校验规则：

1. 用户名: 必填, 长度 2-20
2. 姓名: 必填, 长度 2-10
3. 性别: 必填
4. 手机号: 必填, 11 位, 符合手机号规则

参考 AI 生成的代码，并在其基础上进行改造完成新增员工表单的校验。最终代码形式如下(新增代码为绿色背景)：

<script setup>
import { ref, watch, onMounted } from 'vue'
import { ElMessage } from 'element-plus'
import { queryPageApi, addApi } from '@/api/emp'
import { queryAllApi as queryAllDeptApi } from '@/api/dept'

//职位列表数据
const jobs = ref([{ name: '班主任', value: 1 },{ name: '讲师', value: 2 },{ name: '学工主管', value: 3 },{ name: '教研主管', value: 4 },{ name: '咨询师', value: 5 },{ name: '其他', value: 6 }])
//性别列表数据
const genders = ref([{ name: '男', value: 1 }, { name: '女', value: 2 }])
//部门列表数据
const deptList = ref([])

const searchEmp = ref({
  name: '',
  gender: '',
  date: [],
  begin: '',
  end: ''
})

//侦听searchEmp中的date属性
watch(
  () => searchEmp.value.date,
  (newValue, oldValue) => {
     if(newValue.length == 2){
      searchEmp.value.begin = newValue[0]
      searchEmp.value.end = newValue[1]
     }else {
      searchEmp.value.begin = ''
      searchEmp.value.end = ''
     }
  }
)

onMounted(async () => {
  search()

  //加载所有部门数据
  const result = await queryAllDeptApi();
  if(result.code){
    deptList.value = result.data
  }
})

//查询员工
const search = async () => {
  console.log('Search:', searchEmp.value)
  const result = await queryPageApi(searchEmp.value.name, searchEmp.value.gender, searchEmp.value.begin, searchEmp.value.end, currentPage.value, pageSize.value);
  if(result.code){
    empList.value = result.data.rows
    total.value = result.data.total
  }
}

const clear = () => {
  // 清空表单
  searchEmp.value = {
    name: '',
    gender: '',
    date: [],
    begin: '',
    end: ''
  }
  search()
}

// 示例数据
const empList = ref([])

// 分页配置
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)

// 分页处理
const handleSizeChange = (val) => {
  search()
}
const handleCurrentChange = (val) => {
  search()
}


//新增/修改表单
const employeeFormRef = ref(null)
const employee = ref({
  username: '',
  name: '',
  gender: '',
  phone: '',
  job: '',
  salary: '',
  deptId: '',
  entryDate: '',
  image: '',
  exprList: []
})

//新增员工
const addEmp = () => {
  dialogVisible.value = true
  dialogTitle.value = '新增员工'

  //清空表单内容及校验提示信息
  employee.value = {
    username: '',
    name: '',
    gender: '',
    phone: '',
    job: '',
    salary: '',
    deptId: '',
    entryDate: '',
    image: '',
    exprList: []
  }
  if(employeeFormRef.value){
      employeeFormRef.value.resetFields()
  }
}

//表单校验规则
// 验证规则
const rules = ref({
  username: [
    { required: true, message: '请输入用户名', trigger: 'blur' },
    { min: 2, max: 20, message: '用户名长度应在2到20个字符之间', trigger: 'blur' }
  ],
  name: [
    { required: true, message: '请输入姓名', trigger: 'blur' },
    { min: 2, max: 10, message: '姓名长度应在2到10个字符之间', trigger: 'blur' }
  ],
  gender: [
    { required: true, message: '请选择性别', trigger: 'change' }
  ],
  phone: [
    { required: true, message: '请输入手机号', trigger: 'blur' },
    { pattern: /^1\d{10}$/g, message: '请输入有效的手机号', trigger: 'blur' }//^表示以...开始    $表示以....结束
  ]
});//这里加了之后,只需要在1.下面表单绑定rule属性2.给各个表单项加上prop属性3.发送时校验 4.每次弹出dialog时重置校验规则提示信息

// 控制弹窗
const dialogVisible = ref(false)
const dialogTitle = ref('新增员工')

//文件上传
// 图片上传成功后触发
const handleAvatarSuccess = (response,uploadFile) => {
  employee.value.image = response.data
}
// 文件上传之前触发
const beforeAvatarUpload = (rawFile) => {
  if (rawFile.type !== 'image/jpeg' && rawFile.type !== 'image/png') {
    ElMessage.error('只支持上传图片')
    return false
  } else if (rawFile.size / 1024 / 1024 > 10) {
    ElMessage.error('只能上传10M以内图片')
    return false
  }
  return true
}

//工作经历
//动态添加工作经历 .
const addExprItem = () => {
  employee.value.exprList.push({exprDate: [], begin: '', end: '', company: '', job: ''})
}

//动态删除工作经历 .
const delExprItem = (index) => {
  employee.value.exprList.splice(index, 1)
}

//监听-employee员工对象中的工作经历数据
watch(employee, (newVal, oldVal) => {
  if(employee.value.exprList) {
    employee.value.exprList.forEach(expr => {
      expr.begin = expr.exprDate[0]
      expr.end = expr.exprDate[1]
    })
  }
}, {deep: true})

//保存员工信息
const save = async () => {
  employeeFormRef.value.validate(async valid => {
    if(valid){ // 校验通过
      const result = await addApi(employee.value);
      if(result.code){
        ElMessage.success('新增员工成功')
        dialogVisible.value = false
        search()
      }else {
        ElMessage.error(result.msg)
      }
    }
  })
}
</script>

<template>
  <h1>员工管理</h1> <br>
  <el-form :inline="true" :model="searchEmp">
    <el-form-item label="姓名">
      <el-input v-model="searchEmp.name" placeholder="请输入员工姓名"></el-input>
    </el-form-item>

    <el-form-item label="性别">
      <el-select v-model="searchEmp.gender" placeholder="请选择">
        <el-option label="男" value="1"></el-option>
        <el-option label="女" value="2"></el-option>
      </el-select>
    </el-form-item>

    <el-form-item label="入职日期">
      <el-date-picker
        v-model="searchEmp.date"
        type="daterange"
        range-separator="至"
        start-placeholder="开始日期"
        end-placeholder="结束日期"
        value-format="YYYY-MM-DD"
      ></el-date-picker>
    </el-form-item>

    <el-form-item>
      <el-button type="primary" @click="search">查询</el-button>
      <el-button @click="clear">清空</el-button>
    </el-form-item>
  </el-form>

  <el-button type="primary" @click="addEmp"> + 新增员工</el-button>
  <el-button type="danger" @click=""> - 批量删除</el-button>
  <br><br>

  <!-- 表格 -->
  <el-table :data="empList" border style="width: 100%">
    <el-table-column type="selection" width="55" align="center"></el-table-column>
    <el-table-column prop="name" label="姓名" width="120" align="center"></el-table-column>
    <el-table-column label="性别" width="80" align="center">
      <template #default="scope" >
        {{ scope.row.gender == 1 ? '男' : '女' }}
      </template>
    </el-table-column>
    <el-table-column label="头像" width="170" align="center">
      <template #default="scope" >
        <img :src="scope.row.image" alt="Avatar" class="avatar" />
      </template>
    </el-table-column>
    <el-table-column prop="deptName" label="部门名称" width="170" align="center"></el-table-column>
    <el-table-column label="职位" width="120" align="center">
      <template #default="scope">
          <span v-if="scope.row.job == 1">班主任</span>
          <span v-else-if="scope.row.job == 2">讲师</span>
          <span v-else-if="scope.row.job == 3">学工主管</span>
          <span v-else-if="scope.row.job == 4">教研主管</span>
          <span v-else-if="scope.row.job == 5">咨询师</span>
          <span v-else>其他</span>
        </template>
    </el-table-column>
    <el-table-column prop="entryDate" label="入职日期" width="180" align="center"></el-table-column>
    <el-table-column prop="updateTime" label="最后操作时间" width="210" align="center"></el-table-column>
    <el-table-column label="操作" fixed="right" align="center">
      <template #default="scope">
        <el-button size="small" type="primary" @click="">编辑</el-button>
        <el-button size="small" type="danger" @click="">删除</el-button>
      </template>
    </el-table-column>
  </el-table>

  <br>

  <!-- 分页 -->
    <el-pagination
      v-model:current-page="currentPage"
      v-model:page-size="pageSize"
      :page-sizes="[5, 10, 20, 30, 50, 75, 100]"
      :background="background"
      layout="total, sizes, prev, pager, next, jumper"
      :total="total"
      @size-change="handleSizeChange"
      @current-change="handleCurrentChange"
    />

  <!-- 新增/修改员工的对话框 -->
  <el-dialog v-model="dialogVisible" :title="dialogTitle">
      <el-form ref="employeeFormRef" :model="employee" :rules="rules" label-width="80px">
        <!-- 基本信息 -->
        <!-- 第一行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="用户名" prop="username">
              <el-input v-model="employee.username" placeholder="请输入员工用户名，2-20个字"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="姓名" prop="name">
              <el-input v-model="employee.name" placeholder="请输入员工姓名，2-10个字"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第二行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="性别" prop="gender">
              <el-select v-model="employee.gender" placeholder="请选择性别" style="width: 100%;">
                <el-option v-for="gender in genders" :key="gender.name" :label="gender.name" :value="gender.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>

          <el-col :span="12">
            <el-form-item label="手机号" prop="phone">
              <el-input v-model="employee.phone" placeholder="请输入员工手机号"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第三行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="职位">
              <el-select v-model="employee.job" placeholder="请选择职位" style="width: 100%;">
                <el-option v-for="job in jobs" :key="job.name" :label="job.name" :value="job.value"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="薪资">
              <el-input v-model="employee.salary" placeholder="请输入员工薪资"></el-input>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第四行 -->
        <el-row :gutter="20">
          <el-col :span="12">
            <el-form-item label="所属部门">
              <el-select v-model="employee.deptId" placeholder="请选择部门" style="width: 100%;">
                <el-option v-for="dept in deptList" :key="dept.id" :label="dept.name" :value="dept.id"></el-option>
              </el-select>
            </el-form-item>
          </el-col>
          <el-col :span="12">
            <el-form-item label="入职日期">
              <el-date-picker v-model="employee.entryDate" type="date" style="width: 100%;" placeholder="选择日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD"></el-date-picker>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第五行 -->
        <el-row :gutter="20">
          <el-col :span="24">
            <el-form-item label="头像">
              <el-upload
                class="avatar-uploader"
                action="/api/upload"
                :show-file-list="false"
                :on-success="handleAvatarSuccess"
                :before-upload="beforeAvatarUpload"
                >
                <img v-if="employee.image" :src="employee.image" class="avatar" />
                <el-icon v-else class="avatar-uploader-icon"><Plus /></el-icon>
              </el-upload>
            </el-form-item>
          </el-col>
        </el-row>


        <!-- 工作经历 -->
        <!-- 第六行 -->
        <el-row :gutter="10">
          <el-col :span="24">
            <el-form-item label="工作经历">
              <el-button type="success" size="small" @click="addExprItem">+ 添加工作经历</el-button>
            </el-form-item>
          </el-col>
        </el-row>

        <!-- 第七行 ...  工作经历 -->
        <el-row :gutter="3" v-for="(expr, index) in employee.exprList">
          <el-col :span="10">
            <el-form-item size="small" label="时间" label-width="80px">
              <el-date-picker type="daterange" v-model="expr.exprDate" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" format="YYYY-MM-DD" value-format="YYYY-MM-DD" ></el-date-picker>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="公司" label-width="60px">
              <el-input placeholder="请输入公司名称" v-model="expr.company"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="6">
            <el-form-item size="small" label="职位" label-width="60px">
              <el-input placeholder="请输入职位" v-model="expr.job"></el-input>
            </el-form-item>
          </el-col>

          <el-col :span="2">
            <el-form-item size="small" label-width="0px">
              <el-button type="danger" @click="delExprItem(index)">- 删除</el-button>
            </el-form-item>
          </el-col>
        </el-row>
      </el-form>

      <!-- 底部按钮 -->
      <template #footer>
        <span class="dialog-footer">
          <el-button @click="dialogVisible = false">取消</el-button>
          <el-button type="primary" @click="save">保存</el-button>
        </span>
      </template>
    </el-dialog>

</template>

<style scoped>
.avatar {
  height: 40px;
}
.avatar-uploader .avatar {
  width: 78px;
  height: 78px;
  display: block;
}
.avatar-uploader .el-upload {
  border: 1px dashed var(--el-border-color);
  border-radius: 6px;
  cursor: pointer;
  position: relative;
  overflow: hidden;
  transition: var(--el-transition-duration-fast);
}

.avatar-uploader .el-upload:hover {
  border-color: var(--el-color-primary);
}

.el-icon.avatar-uploader-icon {
  font-size: 28px;
  color: #8c939d;
  width: 78px;
  height: 78px;
  text-align: center;
  /* 添加灰色的虚线边框 */
  border: 1px dashed var(--el-border-color);
}
</style>

代码编写完毕后，我们可以打开浏览器测试一下。

我们可以看到，我们为表单添加的校验规则，确实生效了。 其实,上面的用户名/性别等上面的星号就表示这是必填项了.

并且，如果表单校验不通过，是不能保存员工信息的。

另外,表单项的prop属性用来进行校验,表格中的prop是把数据呈现有关的.
